Resilient Piping Systems for Potable Hot Water Applications

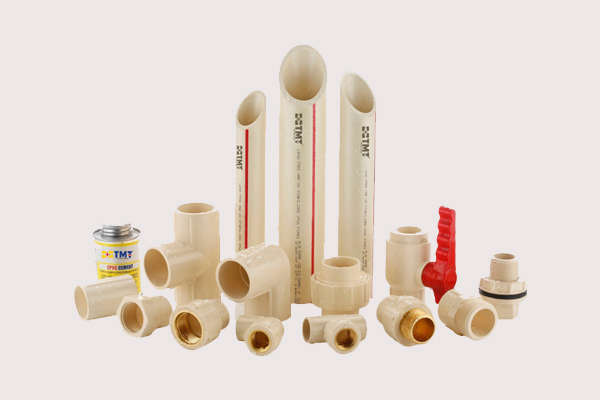

What Are CPVC Pipes & Fittings?
CPVC (Chlorinated Polyvinyl Chloride) is a specialised thermoplastic engineered for superior strength and thermal stability. Unlike traditional PVC, CPVC is designed to withstand significantly higher temperatures and internal pressures, making it the premier choice for modern hot and cold water distribution.
TMT Plus stands as a leader among CPVC pipe and fitting manufacturers in India. We utilise advanced formulations and cutting-edge manufacturing processes to ensure every product delivers optimal plumbing performance. Our pipes are not only built to last but are also designed to maintain water purity and system integrity, offering homeowners and engineers a durable, high-performance alternative for their most critical plumbing needs.
Our CPVC Pipe Range

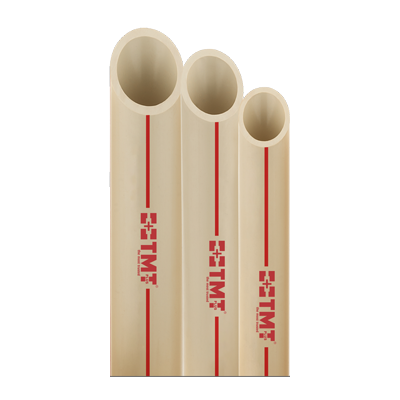

SDR 11
SDR 13.5

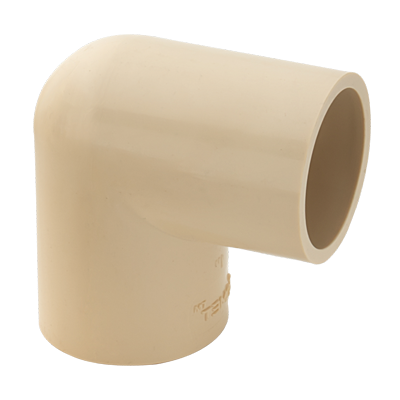

Elbow 90

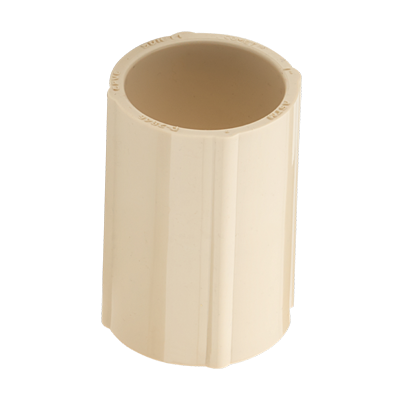

Coupler

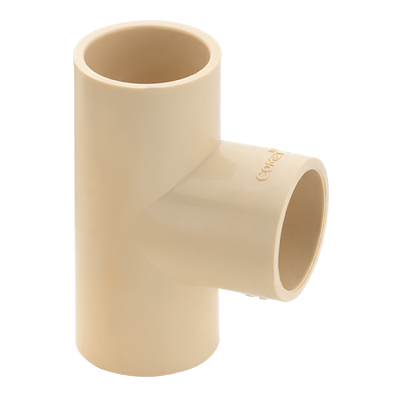

Tee

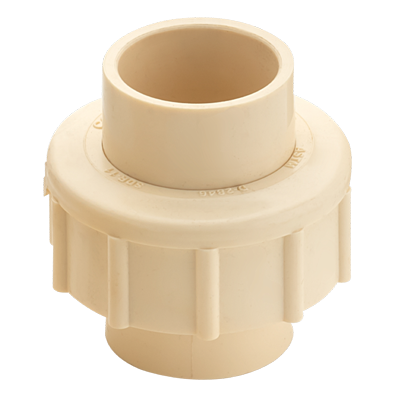

Union

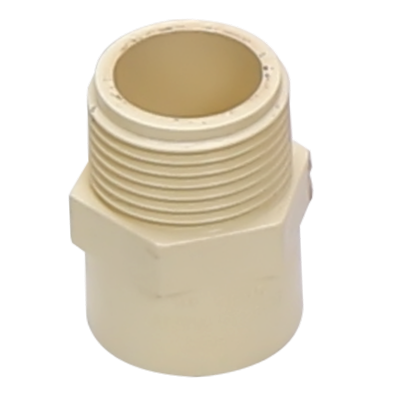

Male Threaded Adaptor

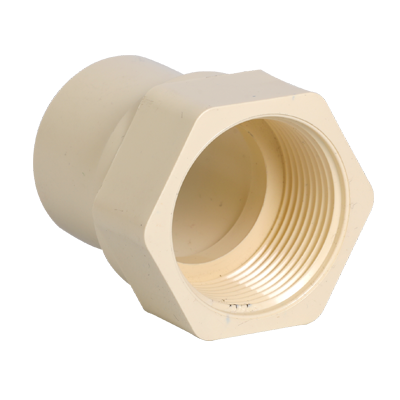

Female Threaded Adaptor

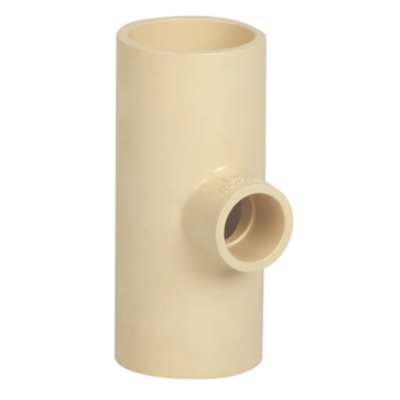

Reducer

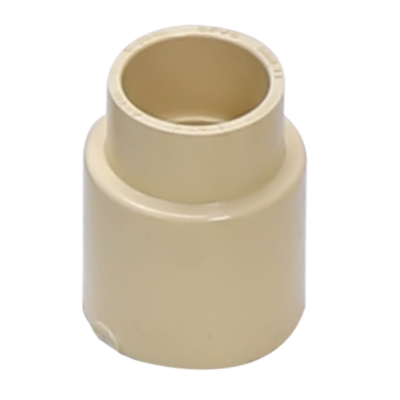

Reducer Coupler

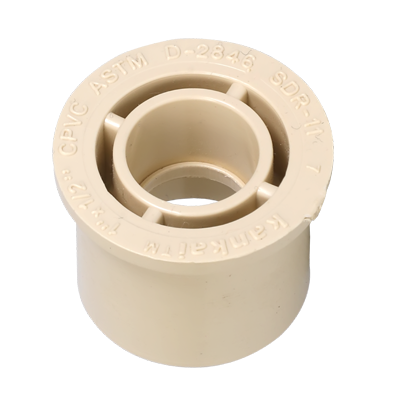

Reducer Bush

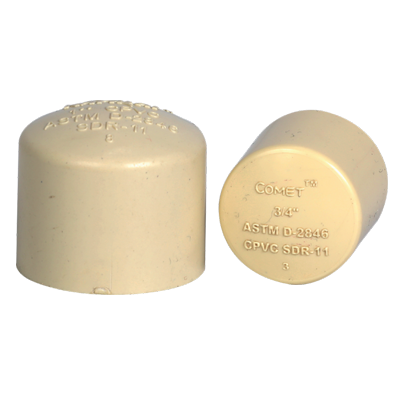

End Cap

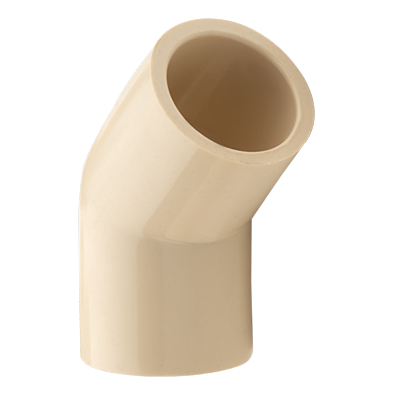

Elbow 45

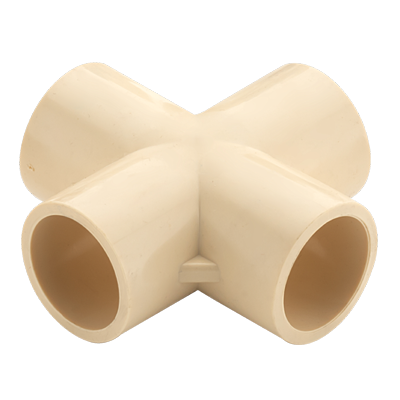

Cross Tee
Socket Tank Nipple

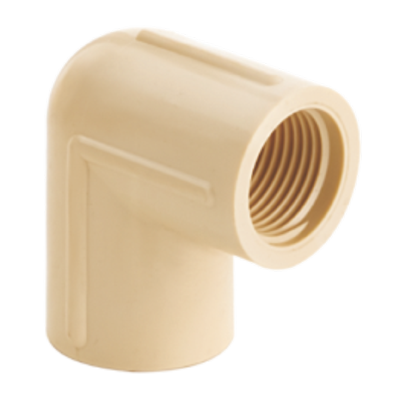

Threaded Elbow

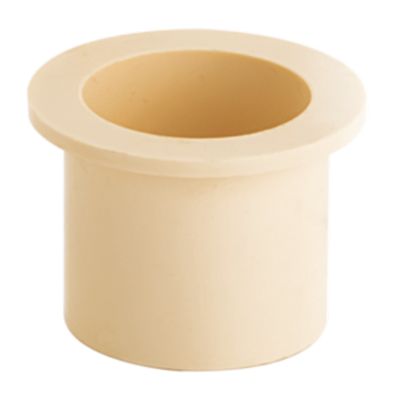

Transaction Bush U to C

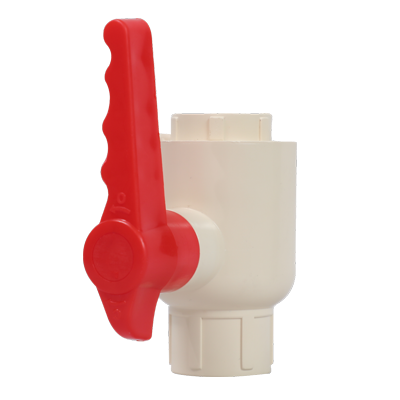

Ball Valve

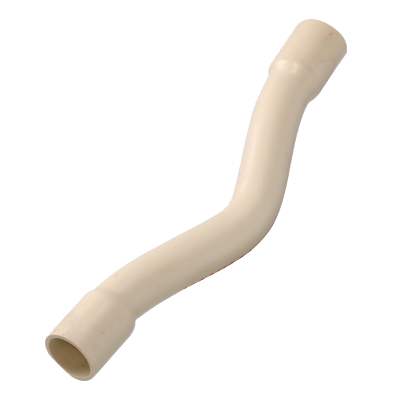

Step Over Band

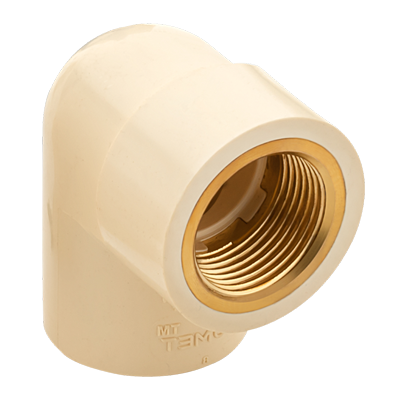

Brass Elbow

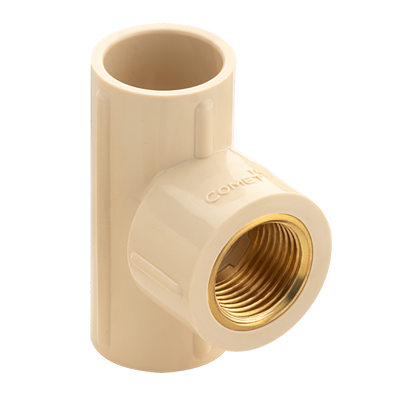

Brass Tee

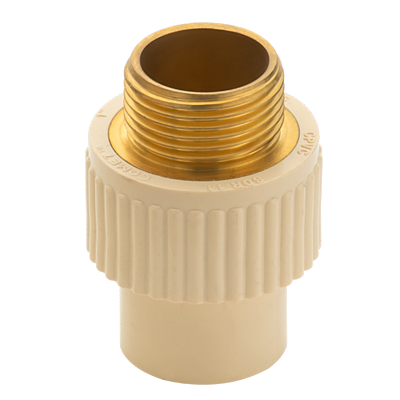

Brass MTA

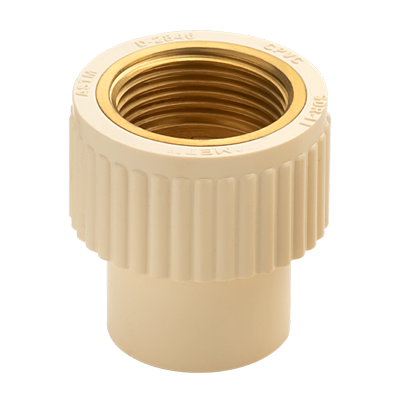

Brass FTA
Features
Where are CPVC Pipes Used?
Why Choose TMT Plus CPVC Pipes
Robust Build
Capable of handling high-pressure main supply lines without fatigue.
Lead-Free & Hygienic
Ensures the safe delivery of potable water without chemical leaching.
Cost-Effective Longevity
A one-time investment that eliminates the need for frequent repairs or replacements.
Trusted Legacy
Over a decade of regional excellence with a 500+ dealer network across North India.
CPVC Pipe Dimensions & Pressure Ratings
| Nominal Bore (Inch) | Nominal Size (mm) | Nominal Outside Diameter (mm) | SDR-11 Wall Thickness | Working Pressure SDR-11 | SDR-13.5 Wall Thickness | Working Pressure SDR-13.5 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min (mm) | Max (mm) | Wt 3 MTR (Kg) | 20°C Cold (Kg/cm²) | 90°C Hot (Kg/cm²) | Min (mm) | Max (mm) | Wt 3 MTR (Kg) | 20°C Cold (Kg/cm²) | 90°C Hot (Kg/cm²) | |||
| 1/2 | 15 | 15.90 | 1.75 | 1.90 | 0.420 | 28.10 | 7.00 | 1.45 | 1.60 | 0.370 | 21.80 | 5.50 |
| 3/4 | 20 | 22.30 | 2.05 | 2.20 | 0.630 | 28.10 | 7.00 | 1.75 | 1.90 | 0.540 | 21.80 | 5.50 |
| 1 | 25 | 28.65 | 2.65 | 2.80 | 1.010 | 28.10 | 7.00 | 2.15 | 2.30 | 0.850 | 21.80 | 5.50 |
| 1.1/4 | 32 | 34.90 | 3.25 | 3.40 | 1.510 | 28.10 | 7.00 | 2.65 | 2.80 | 1.240 | 21.80 | 5.50 |
| 1.1/2 | 40 | 41.35 | 3.85 | 4.00 | 2.100 | 28.10 | 7.00 | 3.15 | 3.30 | 1.750 | 21.80 | 5.50 |
| 2 | 50 | 54.00 | 4.95 | 5.10 | 3.600 | 28.10 | 7.00 | 4.05 | 4.20 | 3.000 | 21.80 | 5.50 |
| 2.1/2 | 65 | 73.30 | 7.01 | 7.84 | 7.200 | 28.10 | 7.00 | 5.20 | 5.60 | 5.200 | 21.80 | 5.50 |
| 3 | 80 | 89.00 | 7.62 | 7.90 | 9.500 | 28.10 | 7.00 | 5.50 | 5.66 | 6.700 | 21.80 | 5.50 |
| 4 | 100 | 114.40 | 8.56 | 9.02 | 13.700 | 28.10 | 7.00 | 6.02 | 6.70 | 9.700 | 21.80 | 5.50 |
